A SELF-CONTAINED CUTTING SYSTEM

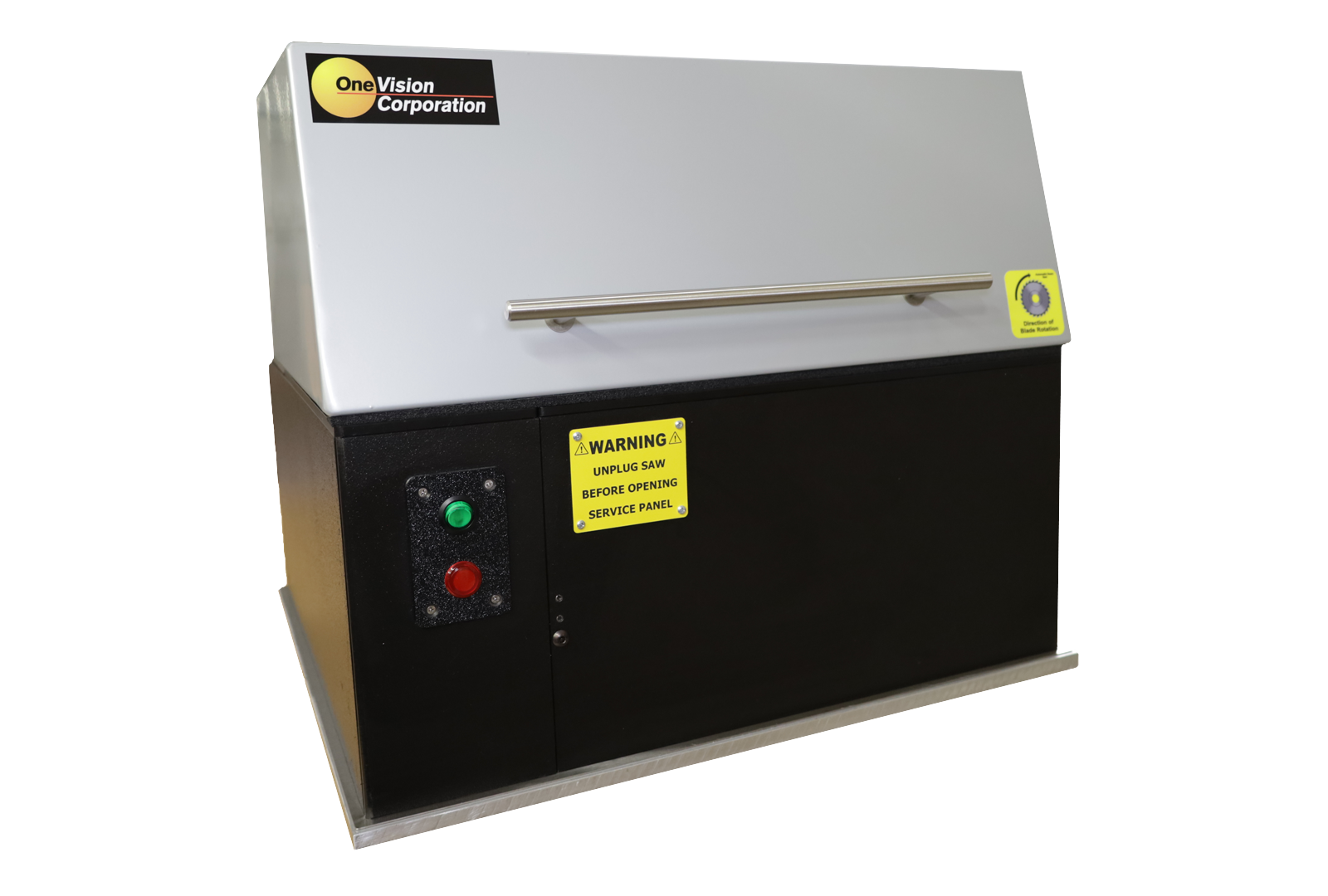

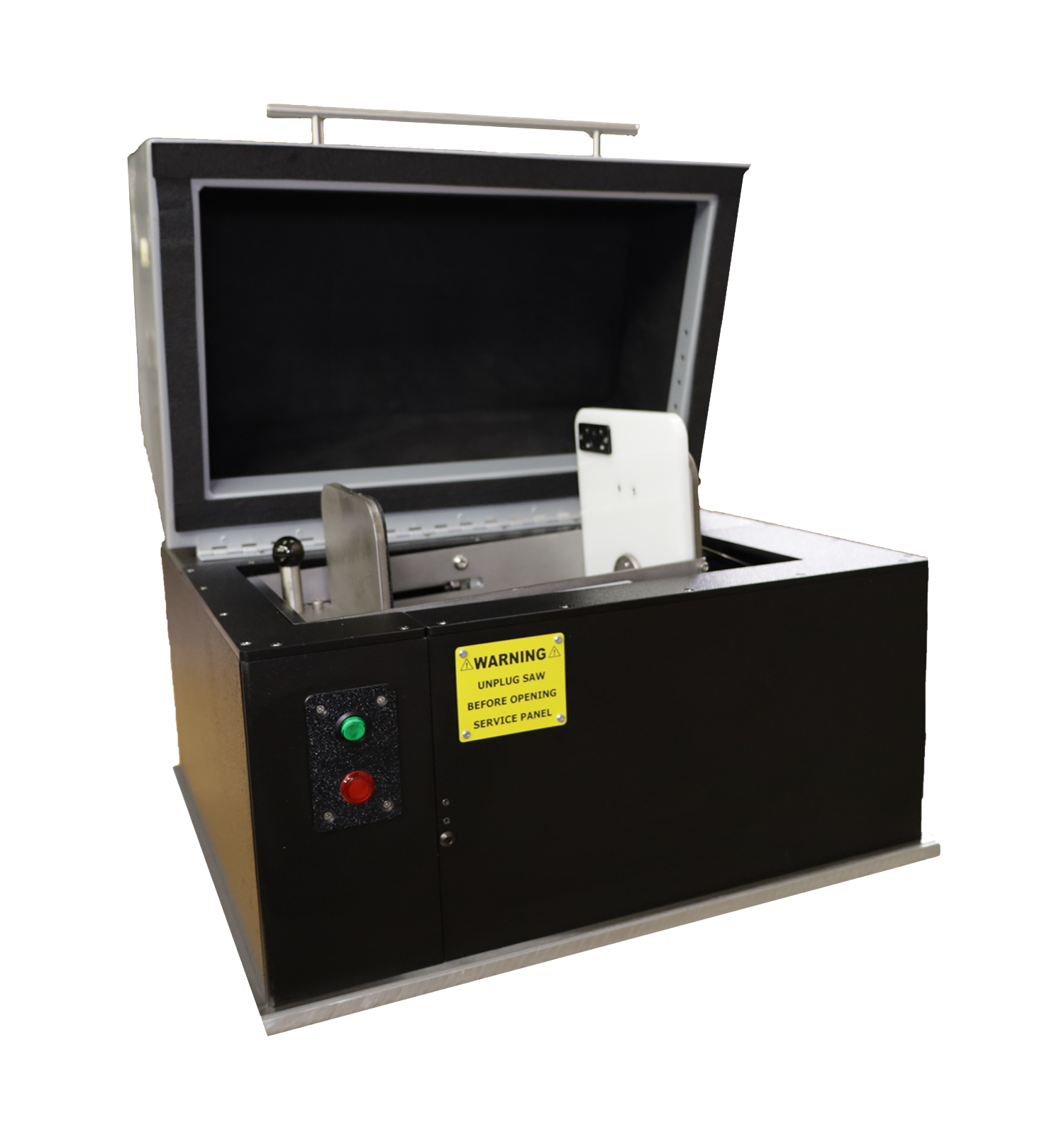

Offering a safe and quiet cutting system, the Automatic Seam Saw produces distortion-free cross sections ideal for seam imaging.
New in 2026, the Model 590 delivers multiple performance improvements and added features, including:
- Universal Can Clamp with automatic can positioning
- Cabinet Service Door for front facing access to cutting area
- Simplified Cuttings Tray for easier cleaning
- Tilt Box Service Pin for added safety
- Sliding Can Clamp Assembly that increases maximum can height & component durability
- Next-Gen Software Architecture with modern hardware/software & offering future upgrade capabilities
- Indestructible Blade Safety Cover
- Safety Interlock Monitoring System for improved operator safety
- Latest mechanical and electrical system components for improved efficiency
FEATURES
- Precision cuts for better images
- Microprocessor-controlled can feed and tab bending
- Microprocessor-controlled blade speed for distortion-free images
- Noise level under 80 dB
- Universal can clamp
- Fast cycle time
- Safe, contained cutting
- Measure-ready can slot
SPECIFICATIONS
- Accommodates 200 to 610 steel, beverage and composite cans
- Dimensions: 22.5" W x 19.5" D x 18" H
- Weight: 145 lbs
- Power requirements: 120 VAC 60 Hz
- Clean compressed air: 80 PSIG at 2 CFM peak
Learn more: onevisioncorp.com/automatic-seam-saw
