FAST, SAFE, CONTAINED CUTTING

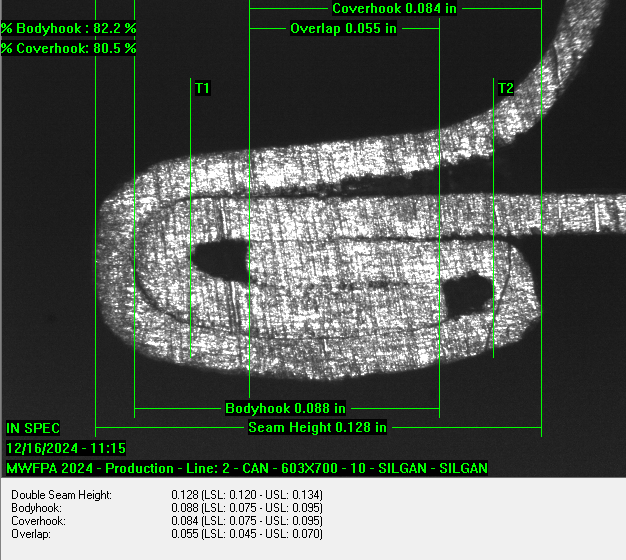

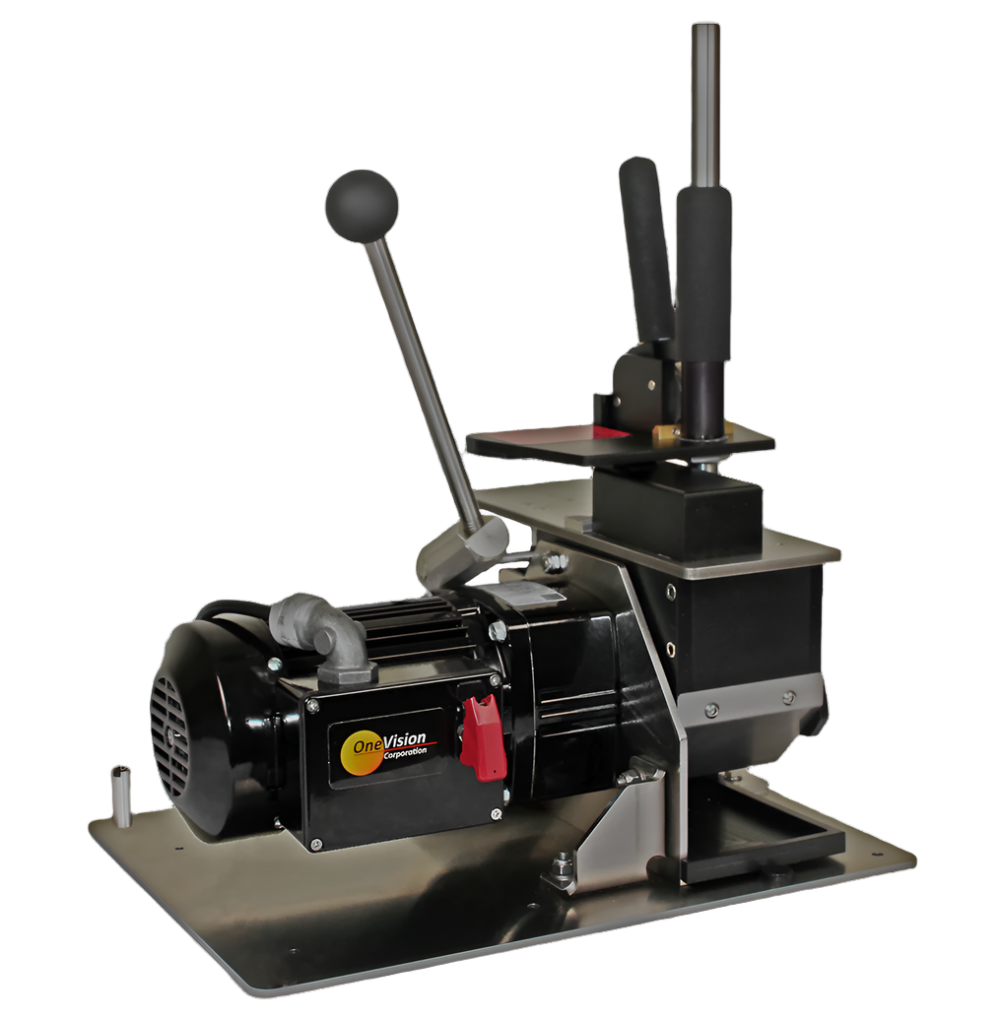

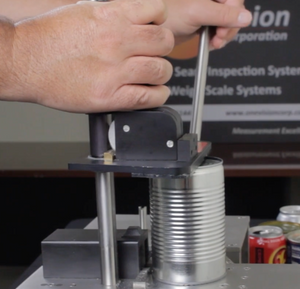

A clean saw cut is necessary for fast and accurate double seam inspection. The Manual Saw's tilt table safely prepares an excellent view of the seam for the video microscope. Designed for slotting metal, tin and composite cans.
FEATURES
- No Seam distortion from precision saw cut
- Centerline cut perpendicular to seam for accurate measurement
- High-quality seam image
- Corrosion-resistant stainless steel

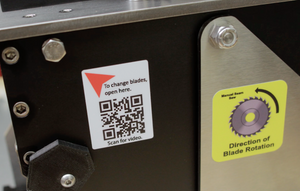

- Easy access to change blades

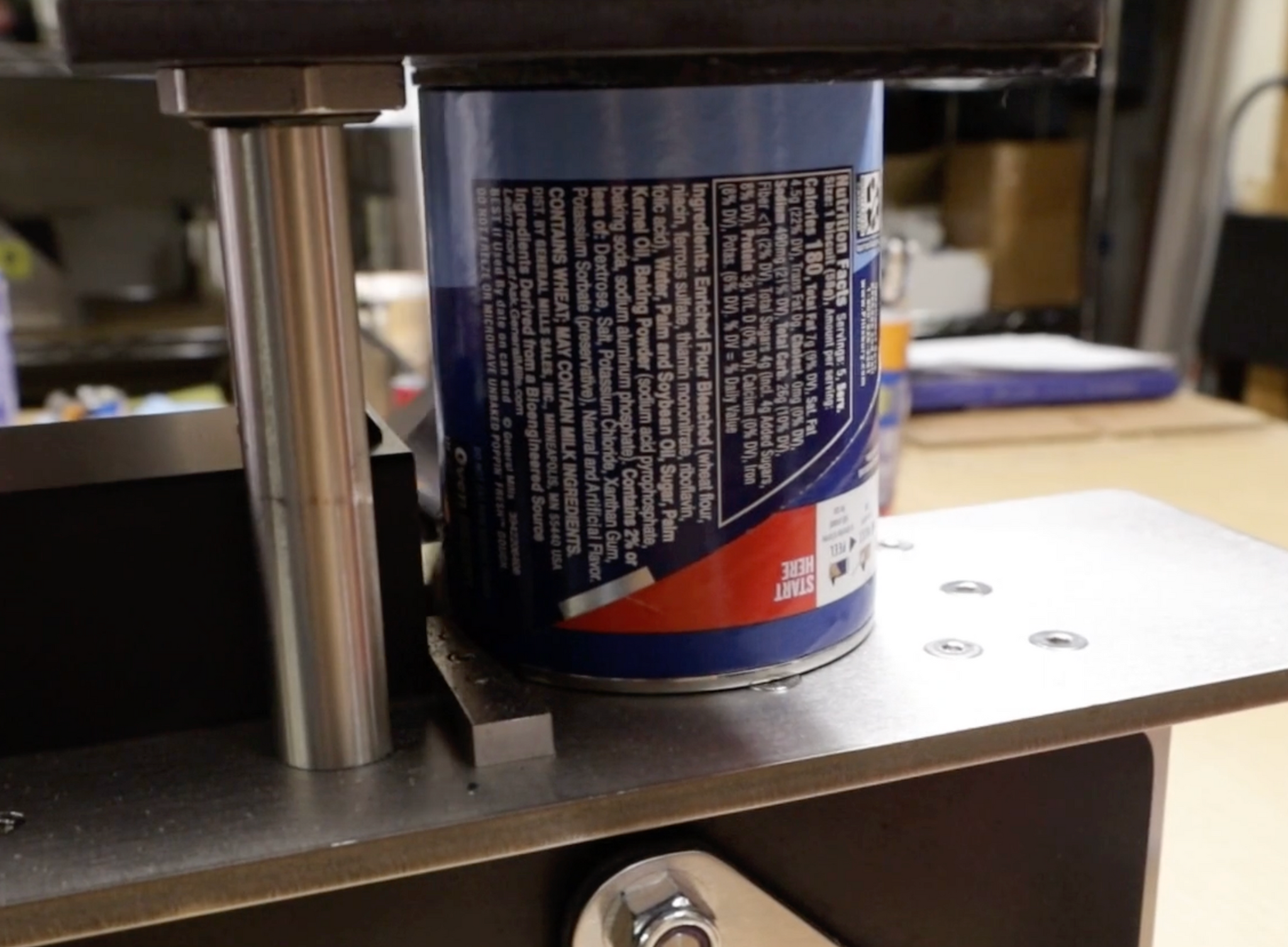

- Accommodates 211 to 610 cans with no part changes

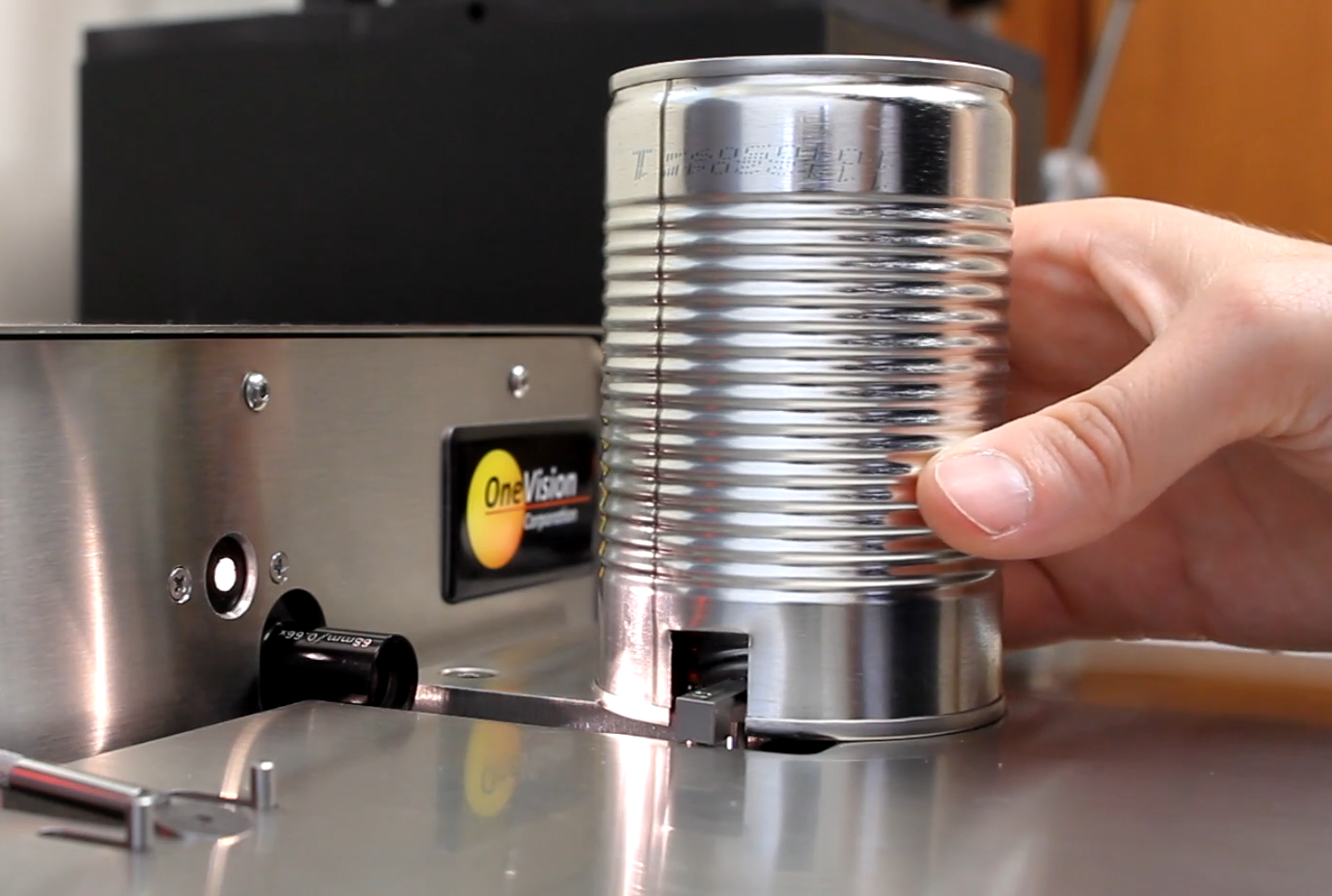

- Tab Bender opens slot for viewing
SPECIFICATIONS
- Typical cutting time under five seconds per slot
- Typical blade life = 5,000 slots
- Blades changed in under five minutes
- Blade diameter = 5 inches
- Saw Teeth = 30 per inch
- Powered by rugged gear motor
- Weight: 58 lbs.
- Dimensions: 12" x 15 1/2" x 18"
- Power requirement: 120 VAC 50/60 Hz
Learn more: onevisioncorp.com/manual-seam-saw
